GhostNet卷积轻量化改进

[参考文章](YOLO11改进 | 卷积模块 | 用Ghost卷积轻量化网络【详细步骤】_ghost轻量化-CSDN博客)

修改

  1. /ultralytics /ultralytics/nn/modules/conv.py中增加GhostConve类,并修改对应__init__.py文件(导入函数名并在__all__中声明)

    python
    class GhostConv(nn.Module):
        # Ghost Convolution https://github.com/huawei-noah/ghostnet
        def __init__(self, c1, c2, k=1, s=1, g=1, act=True):  # ch_in, ch_out, kernel, stride, groups
            super().__init__()
            c_ = c2 // 2  # hidden channels
            self.cv1 = Conv(c1, c_, k, s, None, g, act)
            self.cv2 = Conv(c_, c_, 5, 1, None, c_, act)

        def forward(self, x):
            y = self.cv1(x)
            return torch.cat((y, self.cv2(y)), 1)

    class Ghost(nn.Module):
        # Ghost Bottleneck https://github.com/huawei-noah/ghostnet
        def __init__(self, c1, c2, k=3, s=1):  # ch_in, ch_out, kernel, stride
            super(Ghost, self).__init__()
            c_ = c2 // 2
            self.conv = nn.Sequential(GhostConv(c1, c_, 1, 1),  # pw
                                      DWConv(c_, c_, k, s, act=False) if s == 2 else nn.Identity(),  # dw
                                      GhostConv(c_, c2, 1, 1, act=False))  # pw-linear
            self.shortcut = nn.Sequential(DWConv(c1, c1, k, s, act=False),
                                          Conv(c1, c2, 1, 1, act=False)) if s == 2 else nn.Identity()

        def forward(self, x):
            return self.conv(x) + self.shortcut(x)
  2. 把所有Conv修改为GhostNet

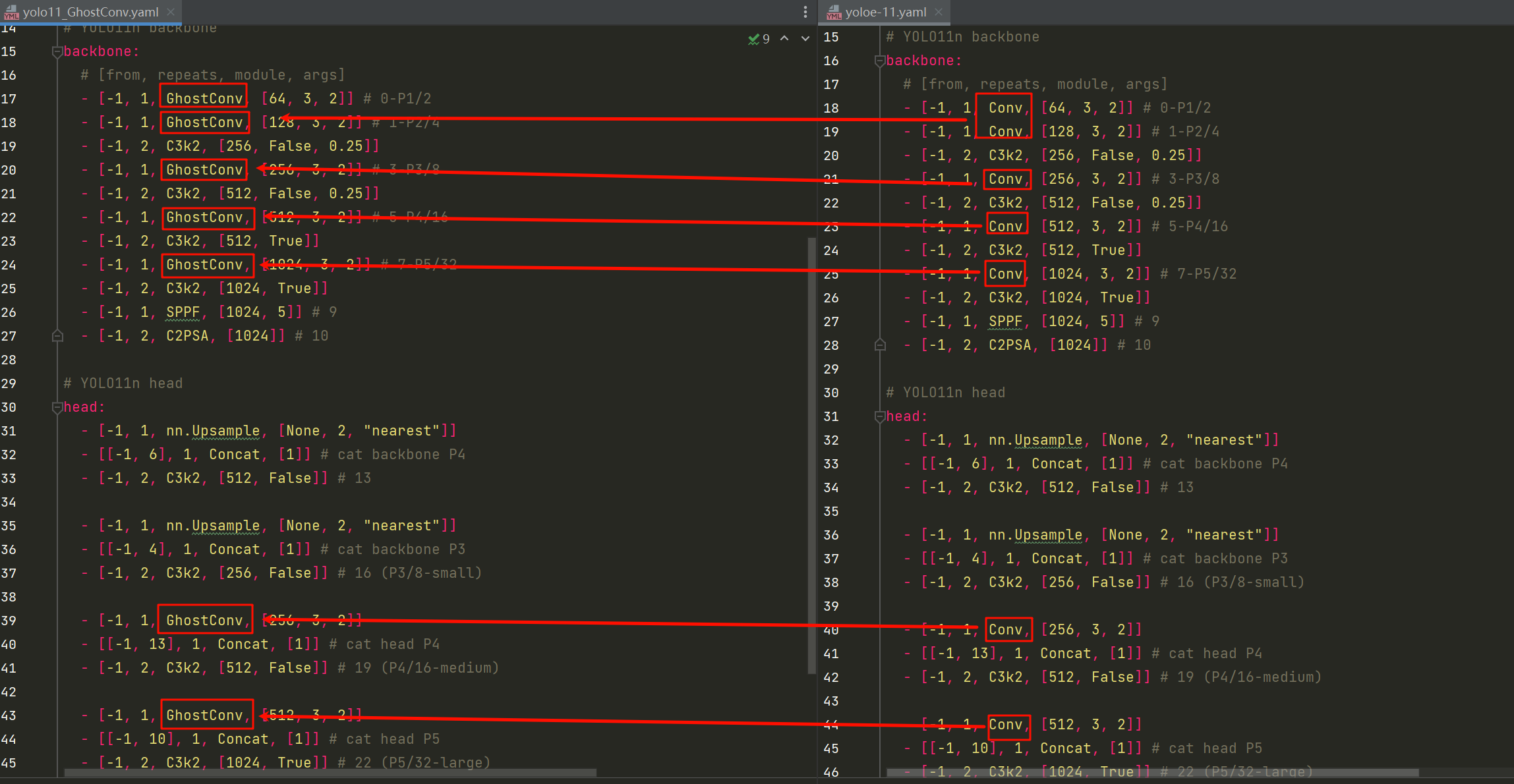

    这里是在\ultralytics\ultralytics\cfg\models \11下新建文件 yolo11_GhostConv.yaml

    image-20250508110201542

  3. 在task.py的parse_model函数中进行注册

  4. 最后执行yolo11_GhostConv_train.py进行训练

改进结果

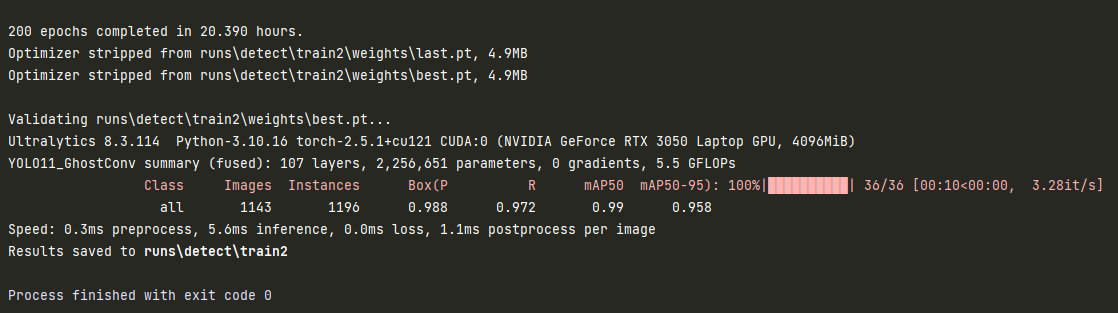

  1. GFLOPs从6.6下降为5.5,减少了约 16.67%,同时mAP浮动在1%以内

    image-20250508111233793

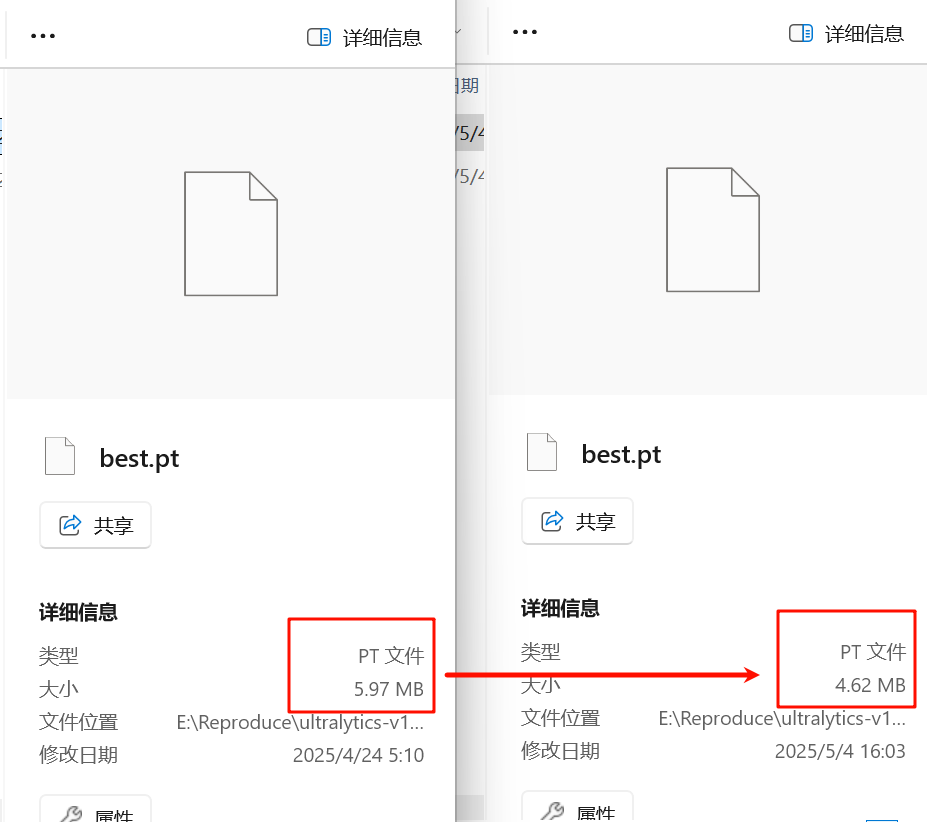

  2. 模型体积减少了约 22.6%

    image-20250508111413897
